Leading Innovators in High Voltage Power Transformer Production

A power transformer is one of the important types of transformers with several industrial and commercial applications. These devices comprise a power supply circuit which is further equipped with several electromagnetic components. These components initiate power transfer between different circuits. Driven on the principle of electromagnetic induction, these devices are used in applications where a large amount of voltage or electrical current transfer is required.

Being a leading manufacturer and supplier of high voltage power transformers, Custom Coils has a vast experience and expertise in designing these devices to suit any industrial need. We can provide custom power transformers of high voltages, which are not only energy-efficient but also ensure a long-term service. We can provide power supply transformers in different dimensions ranging from the size of a dime to the size of a car battery, depending on your requirements. We have expertise in and offer custom power transformers for switch mode power supplies, circuit isolation applications as well as various types of power conversion applications.


Custom Coils capabilities include:

Custom power transformers can provide large voltages and sizeable currents needed to power certain power supplies. They also can be designed and manufactured to ensure long lasting durability. We believe the following capabilities have helped us meet our client requirements efficiently:

  • We possess a vast experience in designing and manufacturing industrial power transformers that can withstand extremes such as high-moisture, high-vibration, and high-pressure operational environments.
  • Our high power transformers can easily withstand a wide range of voltage fluctuations in the circuit.

High Voltage Power Transformer Features and Specifications

Custom Coils provides a comprehensive range of high voltage transformers with the following features and specifications.

  • Features
  • Output Power - 2 to 500 VA
  • Output Current - up to 10A
  • Input Voltages Ranging From:
    • 100 VAC +/- 10%
    • 115 VAC +/- 10%
    • 220/230/240 VAC +/- 10%
    • 115/230 VAC +/- 10%
    • 240 VAC +/- 10%
    • 100/115/220/230/240 VAC +/- 10%
    • Available in any custom input voltage
  • Input Voltages Ranging From:
    • 50 Hz
    • 60 Hz
    • 50/60 Hz
    • 400 Hz
  • Formats
    • PC Mount
      • Low Profile
      • Single or Split Section
      • Horizontal
      • Vertical
      • Lead Wire or Bobbin Terminal Toroids on Headers
    • Chassis Mount
      • Low Profile
      • Split Section
      • Lead Wire or any type of termination
  • Isolation - Up to 30 KVDC

Related Products

Different Types of Power Transformers Provided by Custom Coils

At Custom Coils, we specialize in the design and delivery of the following types of transformers:

High Voltage Power Transformer Construction and Design

An energy-efficient transformer design coupled with proven manufacturing techniques allow us to manufacture performance-driven industrial power transformers. We regularly invest in state-of-the-art tooling and winding equipment, which help us improve our time-to-market capability, as well as assure high ROI to our clients. At Custom Coils, we provide custom high voltage power transformers with the following specifications:

  • Core Materials:Powdered iron, silicon steel, nickel steel, ferrite, and other specialty materials
  • Terminations: Lead wires, terminal blocks, various terminals, printed circuit board bobbins

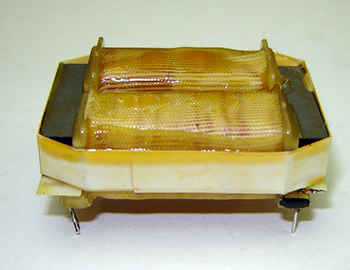

  • Core Types:Laminations, C-Core, and U-Core
  • Finishing:Specialized finishing provided
  • Winding:Copper, aluminum, or other material depending on the application
  • Electrostatic shielding provided

Applications of Custom Power Transformers

Over the years, we have established a strong footprint in the industry by designing and delivering the highest-quality power supply transformers to our clients across industries. We provide customized power transformers for the following applications:

Custom High Voltage Transformers Tailored to Your Requirements

Do you want reliable customized power transformers? If yes, you can contact us with the following requirements:

  • Power Rating in VAc
  • Number of Primary and Secondary Windings
  • Operating Current and Voltage Levels
  • Operating Frequencies

In addition to the above mentioned, you can mention the following:

  • Space Limitations
  • Mounting Types



Do you have any questions about our industrial power transformers or any other custom magnetic assembly?

Ask our skilled experts who can solve all your doubts on any type of high power transformers you can think of!
