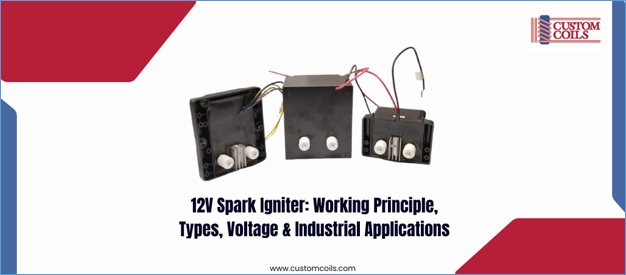

A spark igniter is a compact, yet critical device used to initiate combustion in gas-based systems. In industrial settings, the 12V spark igniter is widely preferred because it balances safety, control, and ignition reliability. From HVAC burners to furnaces and process heating equipment, spark ignition remains a trusted method. This post explains how a spark igniter works, explores common types available, examines voltage behavior, and identifies where electric spark igniters are used across industries.
How Does a Spark Igniter Work? Step-by-Step Working Principle
A 12V spark igniter operates on a simple electrical principle:
- A low 12V DC voltage is applied to the igniter circuit.
- The electronic igniter alters and boosts this input using an internal transformer.
- The output voltage rises sharply, often reaching several thousand volts.
- This high voltage jumps across a small air gap, called a spark gap.
- The visible spark ignites a gas or fuel-air mixture.
The spark lasts only milliseconds, yet the temperature at the arc is extremely high. This fast discharge is what makes spark ignition reliable even in cold or damp environments.
How Many Volts Does a Spark Igniter Produce?
While labeled as a 12V spark igniter, the output voltage is far higher. Internally, the voltage is stepped up to anywhere between 20 kV (20,000 volts) and 26 kV (26,000 volts), typically at a current rating of approximately 30 mA. This high voltage is required to jump the electrode gap and create a stable spark. The low input voltage improves system safety and simplifies control circuitry, which is why 12V designs are popular in industrial control panels.
Industrial Applications for 12V Spark Igniters
12V spark igniters are widely used across multiple industries and applications, including:
- Industrial furnaces and kilns
- Gas burners in manufacturing plants
- HVAC systems and commercial heating units
- Oil and gas pilot ignition systems
- Laboratory combustion equipment
For industrial systems that rely on reliable spark igniters or ignition assemblies, consider working with a manufacturer that can deliver tailored components for your exact needs.
Custom Coils offers a range of custom magnetic products, including high-voltage modules, 12V spark generators, spark gap igniters, and electronic ignitor assemblies’ custom-engineered to your specifications. These parts are engineered and manufactured in the USA with years of field-proven performance and strong quality controls
